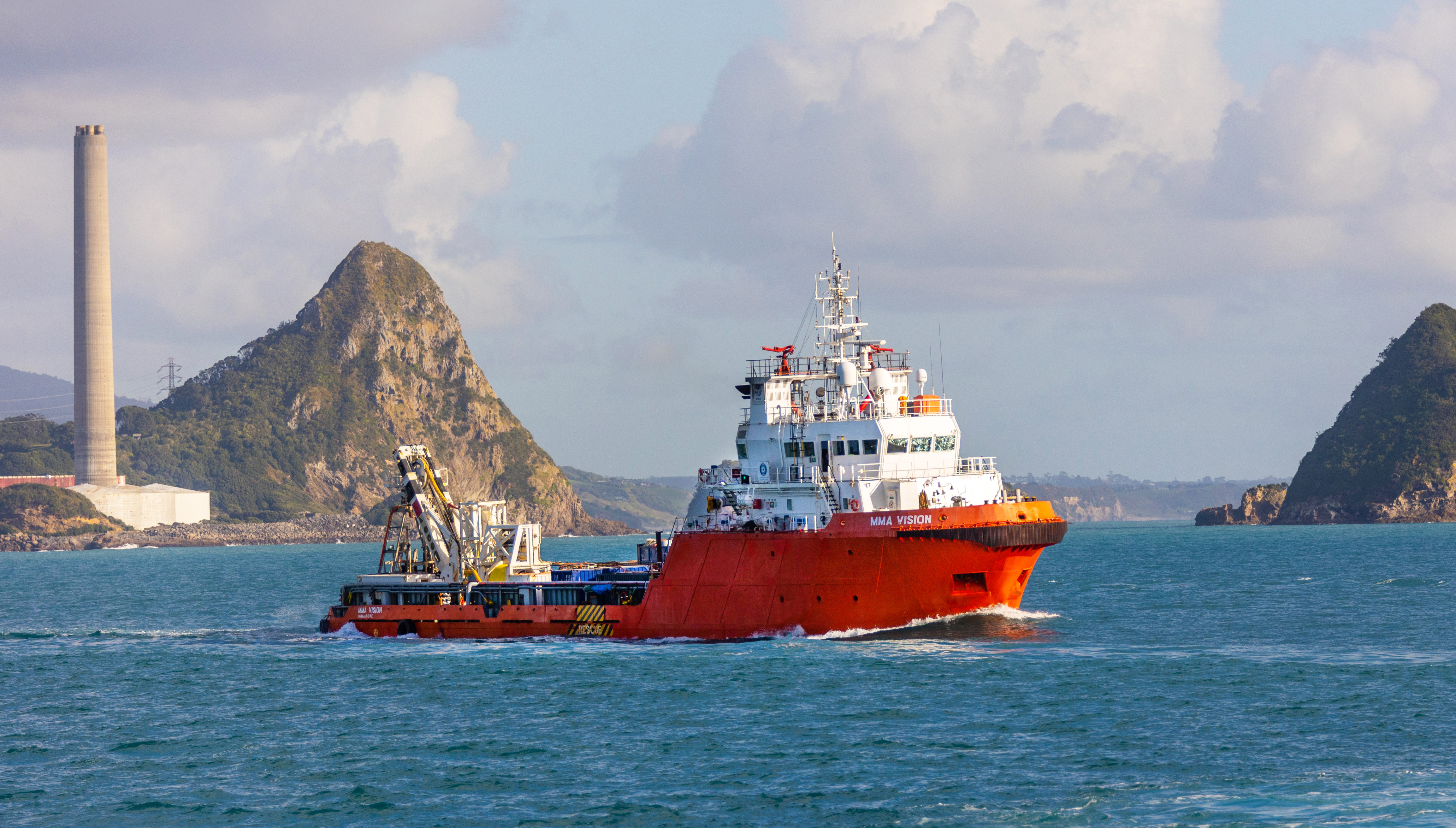

MMA Vision

/sites/mmaoffshorecomau//assets/public/image/ProductListing/Vessels - MMA Vision - NZ 3 - edited copy sml.jpg

Overview

The MMA Vision operates predominately for our clients in Australasia and South East Asia. The vessel has supported a host of operators and the majority of offshore projects on the North West Shelf of Western Australian. The vessel is an ideal asset for anchor handling scopes, rig movements and towing scopes. With significant clear deck space and tank capacities the vessel can also supply deck cargo, water, fuel, dry bulk and mud to rigs and offshore platforms.

Enquire Today

Key Features

  • Notation:
    ✠A1, Towing Vessel, Fire Fighting Vessel Class 1, Offshore Support Vessel, (E), ✠AMS, ✠ACCU, ✠ DPS-2
  • Built:
    Built in 2009 by PT. Nanindah Mutiara Shipyard
  • Port of Registry & Flag:
    Singapore & Singapore Flag
  • Deck Space:
    425 m² free deck space at 7.5 t/m² deck strength
  • Bollard Pull:
    105 tonnes bollard pull is ideal for towing scopes
  • BHP:
    The vessel has a total of 8,000 BHP

Vessel Summary

  • PARTICULARS
    • Vessel Type AHTS
    • IMO Number 9548627
    • Port of Registry Singapore
    • Year Built 2009
    • Class American Bureau of Shipping
    • Notation ✠A1, Towing Vessel, Fire Fighting Vessel Class 1, Offshore Support Vessel, (E), ✠AMS, ✠ACCU, ✠ DPS-2
  • DETAILS
    • Length Overall 67.8 m
    • Breadth 15 m
    • GRT-NRT 1951/580
    • Deadweight 1,700 t
    • Depth Moulded 6.1 m
    • Maximum Draft 5.0 m
    • Clear Deck Space 425 m²
    • Deck Loading 7.5 t/m² (600 t total)
    • Max Speed 14 kts
    • Economical speed 11 kts
    • Bollard Pull 105 t
    • Sewage Plant Taiko SB-40 MARPOL compliant
    • Rudders 2 Ulstein Highlight Streamline
    • Joystick Coverteam
    • Flow Meter Fitted
  • CAPACITY
    • Fuel Oil 606 m³
    • Potable Water 513 m³
    • Drill Water 545 m³
    • Oil Based Mud 416 m³
    • Dispersant 13.5 m³
    • Dry Bulk 170 m³ in four tanks
    • Foam 13.5 m³
  • PUMPING RATES
    • Fuel Oil 1 x 125 m³ @ 75 m head
    • Potable Water 1 x 125 m³ @ 75 m head
    • Drill Water 1 x 125 m³ @ 75 m head
    • Oil Based Mud 2 x 100 m³ @ 80 m head
    • Dry Bulk 2 x 20 m³ @ 80 psi/min
  • MACHINERY
    • Main Engines 2 x 2,970 kW MAK 9M25
    • Generators 2 x 370 kW Caterpillar C18
    • Emergency Generators 1 x CAT C4.4 DITA
    • Bow Thruster 2 x 400 kW Kawasaki
    • Stern Thruster 1 x 400 kW Kawasaki
    • Propulsion 2 x CPP in Kort Nozzle
  • ACCOMMODATION
    • Berths 4 x 1, 6 x 2, 4 x 4
    • Total 32
  • FIRE FIGHTING
    • Class 1
    • Monitors 2 x 1,200 m³/hr
    • Pumps 2 x 1,540 m³/hr
  • DECK EQUIPMENT - Towing Winch
    • Type Rolls Royce electro hydraulic waterfall
    • Pull 200 t
    • Brake Holding 250 t
    • Wire Capacity 1,000 m x 56 mm
  • DECK EQUIPMENT - Anchor Handling Winch
    • Type Rolls Royce electro hydraulic waterfall
    • Pull 200 t
    • Brake Holding 250 t
    • Wire Capacity 900 m x 58 mm
  • DECK EQUIPMENT - Tugger Winch
    • Number & Capacity 2 x 10 t SWL
    • Wire Capacity 250 m x 22 mm
  • Other Deck Equipment
    • Storage Drum Electro hydraulic, 1000m x 58mm, 7.5t pull
    • Towing Pins Karmoy 2 x 250 t SWL
    • Shark Jaws Karmfork 1 x 250 t SWL
    • Stern Roller 1.8m x 5m x 250 t SWL
    • Crane 1 x 3 t telescopic to 15 m
    • Deck Voltage & Sockets 2 x 415v, 2 x 220v
    • Water Maker 1 x 12 m³ reverse osmosis
  • LIFESAVING
    • Liferafts 6 x 16 man
    • Lifejackets 40 SOLAS approved
    • FRC/Rescue Boat/Davit Boat Noreq FRB 650, Davit NPDS3500H
    • Lifebuoys 8
    • Immersion Suits 32
  • SPECIALIST
    • DP Class Class 2, Converteam
    • DGPS Veripos
    • Fanbeam 1 x CyScan laser
    • Rescue Zone Yes
