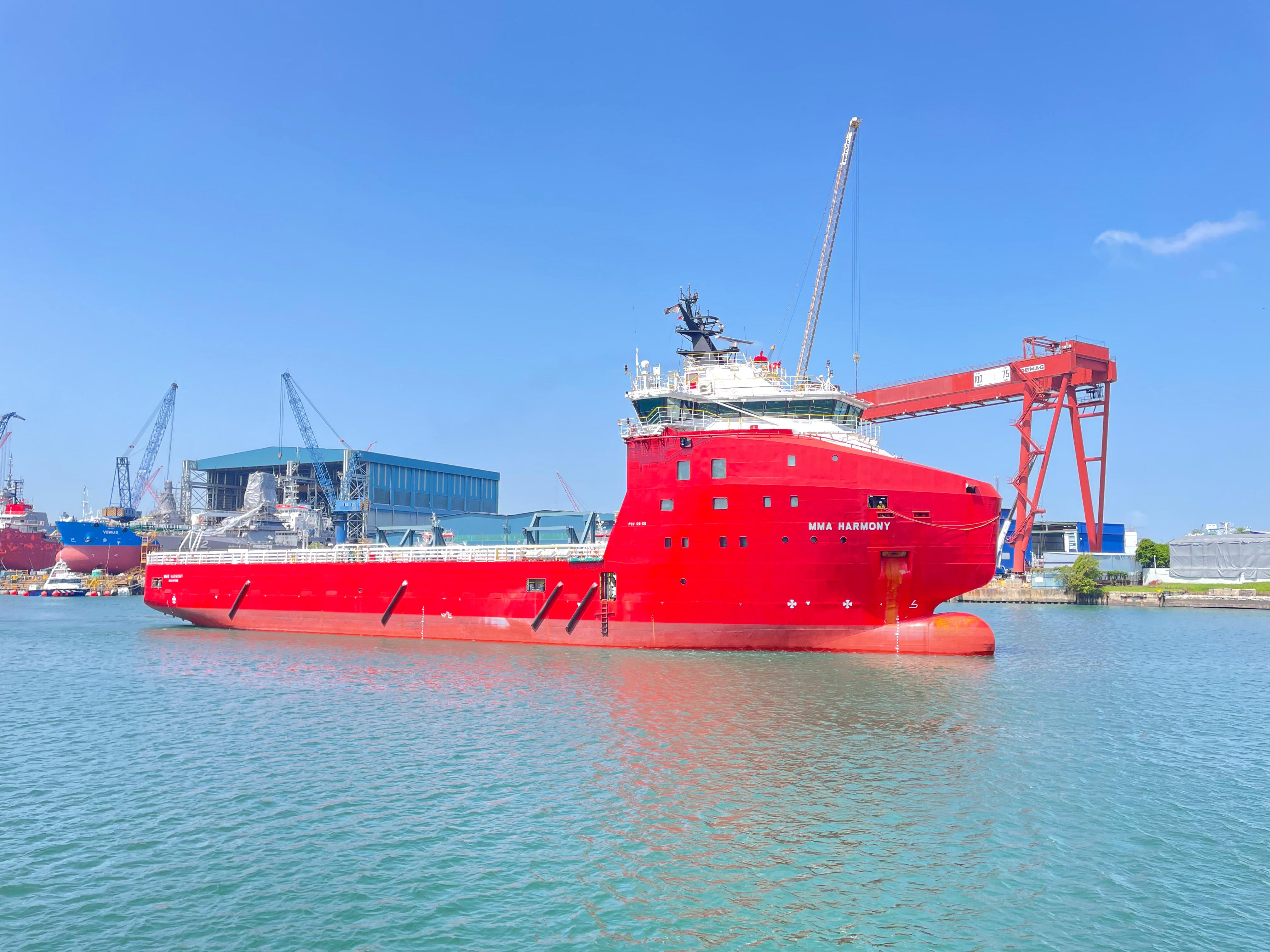

MMA Harmony

Overview

The MMA Harmony is of STX 09 CD PSV design, which was developed by STX Europe in 2009 after two years of extensive research and development.

The hull was specially designed to reduce resistance and improve performance in all weather conditions. Fuel consumption is reduced by minimising the additional resistance generated by waves. Flare has been reduced in the upper part of the bow for cutting through large waves.

The area above the bulb is uniquely designed to reduce resistance in small or medium waves. The underwater lines are optimised for calm seas. The vessel will consume less fuel, which reduces harmful emissions to the environment.

Selective catalytic reduction (SCR) system equipped in the ship helps to reduce nitrogen oxide and sulphur oxide emissions.

The vessel has DNV-GL CLEAN DESIGN class notation which has more stringent levels for emissions to the air and discharges to the sea than what either the International Maritime Organization or most flag states require. The CLEAN DESIGN notation must comply with additional requirements, including design requirements for avoiding and limiting the consequences from accidents.

Enquire Today

Key Features

• Notation:
  ABS A1, Fire Fighting Vessel Class 1, Offshore Support Vessels, DPS-2, Oil Recovery Vessel Class 1, AMS, ACC, IHM, HAB9WB), ENVIRO, HLC, NBLES. LFL(*), SF, DK(+)
• Year:
  2016
• Flag:
  The vessel operates under a Singapore Flag
• Accommodation:
  26 man accommodation
• Dynamic Positioning:
  DP2 notation, two forward tunnel thrusters provide ideal offshore manoeuvring

Vessel Summary

• PARTICULARS
  • Vessel Type Platform Supply Vessel
  • IMO Number 9647801
  • Port of Registry Singapore
  • Year Built 2016
  • Class ABS
  • Notation ABS A1, Fire Fighting Vessel Class 1, Offshore Support Vessels, DPS-2, Oil Recovery Vessel Class 1, AMS, ACC, IHM, HAB9WB), ENVIRO, HLC, NBLES. LFL(*), SF, DK(+)
• DETAILS
  • Length Overall 87.9 m
  • Breadth 19 m
  • GRT-NRT 3,921/1,666 t
  • Deadweight 4,700 t
  • Depth Main Deck Midship 8 m
  • Maximum Draft 5.9 m
  • Cargo Deck Area 1,000 m
  • Deck Loading 10t/m2 aft of Fr.30, 5t/m2 fwd of Fr.30
  • Max Speed 4 x engines @14kts, 23 – 25m3 / 24hrs
  • Sewage Plant Fitted
  • Flow Meter Fitted
• PUMPING RATES
  • Fuel Oil 2 x 250m3/hr @ 90m head Centrifugal, Electric, 2 Speed
  • Drill water 2 x 250m3/hr @ 90m head Positive Displacement Screw, Hydraulic
  • Dry bulk 6 tanks, Total Capacity – 318m3 (11,230 cu.ft)
  • Fresh water 2 x 250m3/hr @ 90m head Positive Displacement, Frequency controlled
  • Liquid mud 2 x 100m3/hr @ 24 bar Positive Displacement, Hydraulic
  • Brine 1 x 100m3/hr @ 75m head Centrifugal, Electric, 2 Speed
  • Base oil 1 x 100m3/hr @ 90m head Centrifugal, Electric, 2 Speed
  • Methanol 2 x 75m3/hr @ 90 m head Submerged Centrifugal, Hydraulic
• MACHINERY
  • Main Engines 4 x CAT 3512TA (C), 1550 KW @ 1800 rpm
  • Emergency Generators 1 x Perkins, 118 KW, 1800 rpm
  • Propulsion 2 x Schottel, 2500 KW, Twin Propeller
• ACCOMMODATION
  • Berths 10 x 1, 4 x 2, 2 x 4
  • Total 26

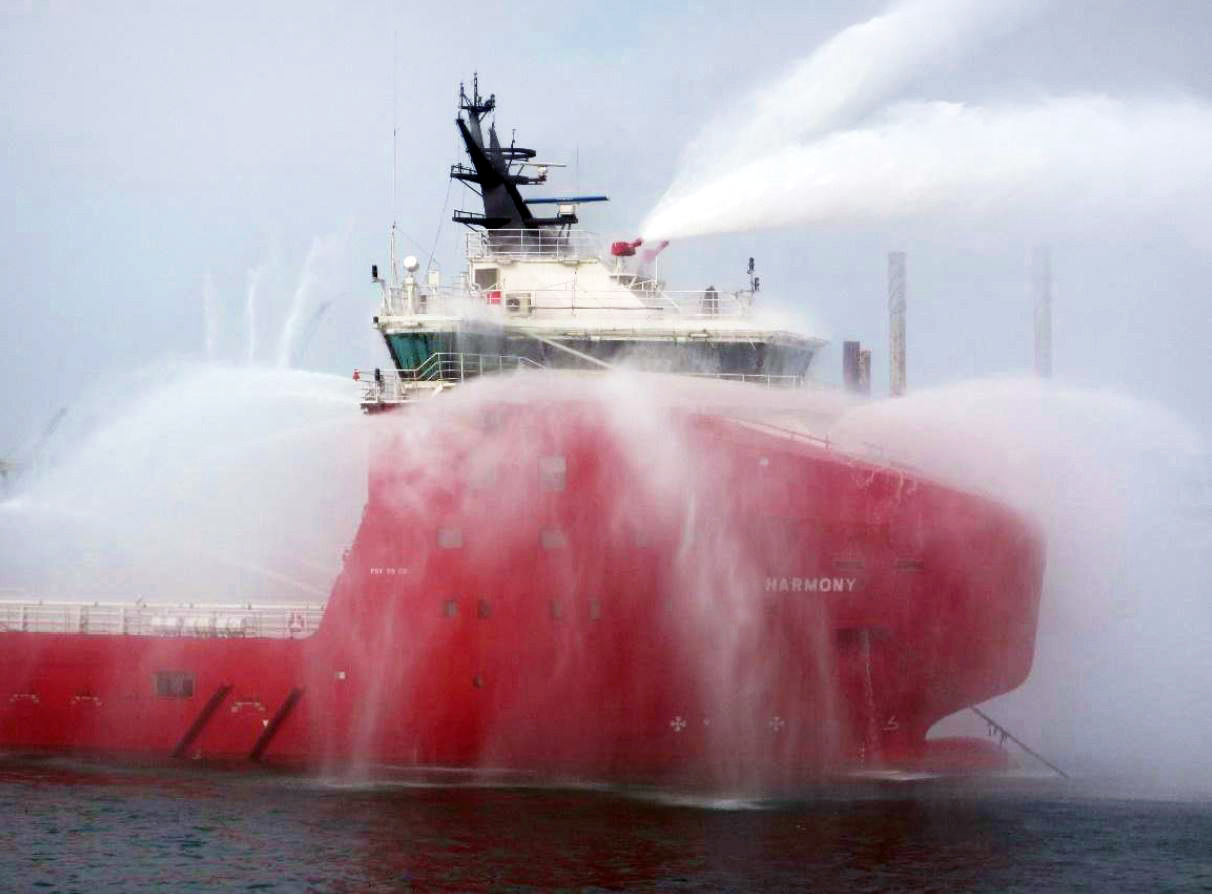

• FIRE FIGHTING
  • Monitors 2 x FFS1200LB, Each 1200m3/hr, Throw Length / Height - 120m / 50m
  • Pumps 2 x Sulzer SFP 250 x 350 HD CCW, Each 1730m3/hr @130m Head
• DECK EQUIPMENT - TUGGER WINCH
  • Number & Capacity 2 x Adria, Frequency-controlled, Pull/Brake: 10T/15T, Drum: 275m of 20mm diameter wire
• OTHER DECK EQUIPMENT
  • Crane 1 x TTS GPT 115-5-10 Fixed Boom, 5T @10m Anchor 2 x M Spek, 3450kg Each
• LIFESAVING
  • Liferafts 6 x Viking 16DK+, Capacity – 16 persons
  • Lifejackets 32
  • Rescue Boat/FRC 1 x Noreq FRB-650, 15 person, 156 kW, Inboard Diesel Engine, Waterjet Propulsion, 28 knots
  • Lifebuoys 8
  • Immersion Suits 32
• DYNAMIC POSITIONING
  • Maker Kongsberg K-Pos 21
  • Gyro 3 x Anschutz STD 22
  • Wind Sensor 3 x Gill WindObserver II Ultrasonic
  • Motion Response Unit 3 x Nautica - Piro-25Da
  • DGPS 1 1 x Kongsberg Seatex DPS 110 (DGPS)
  • DGPS 2 1 x Seatex DPS 112 (DGPS/DGLONASS)
  • DP Laser Sensor 1 x Guidance Navigation Cyscan MK 4
  • HPR Trunk 1 x HiPAP transducer mounted through gate valve
  • Hydro-acoustic 1 x Bottom-mounted 500mm diameter with
    Sluice Valve, suitable for Kongsberg HiPAP
• RADIO AND NAVIGATION EQUIPMENT
  • Inmarsat C 2 x Furuno FELCOM 15
  • MF/HF 1 x Furuno FS-2575C
  • Fixed VHF 2 x Furuno FM-8900S
  • Portable VHF 3 x Jotron Tron TR20
  • Fixed UHF 2 x Motorola GM380
  • Portable UHF 6 x Motorola GP340 Ex 403
  • Fleet Broadband 1 x FELCOM 250
  • SSAS 1 x Furuno IC 307
  • NAVTEX 1 x Furuno NX-700A
  • AIS 1 x Furuno FA-150
  • VDR 1 x Furuno VR 3000
  • EPIRB 2 x Jotron Tron 60S
  • SART 2 x Jotron Tron SART 20
  • Internal Communications 1 x Vingtor VSP Batteryless Telephone, 1 x Vingtor SPA-M1H Loudhailing System, 1 x Vingtor ACM-Alphacom Integrated, Telephone/Intercom/PA/GA System
  • TV-AM-FM Antenna 1 x Naval Mark 32 ALC
  • LAN Connections All cabins and offices
• MISCELLANEOUS
  • Oily Water Separator 1 x RWO SKIT / S – DEB 2.5m3/hr
  • Sewage Treatment Plant 1 x DVZ Services SKA30 Biomaster Plus
