Overview

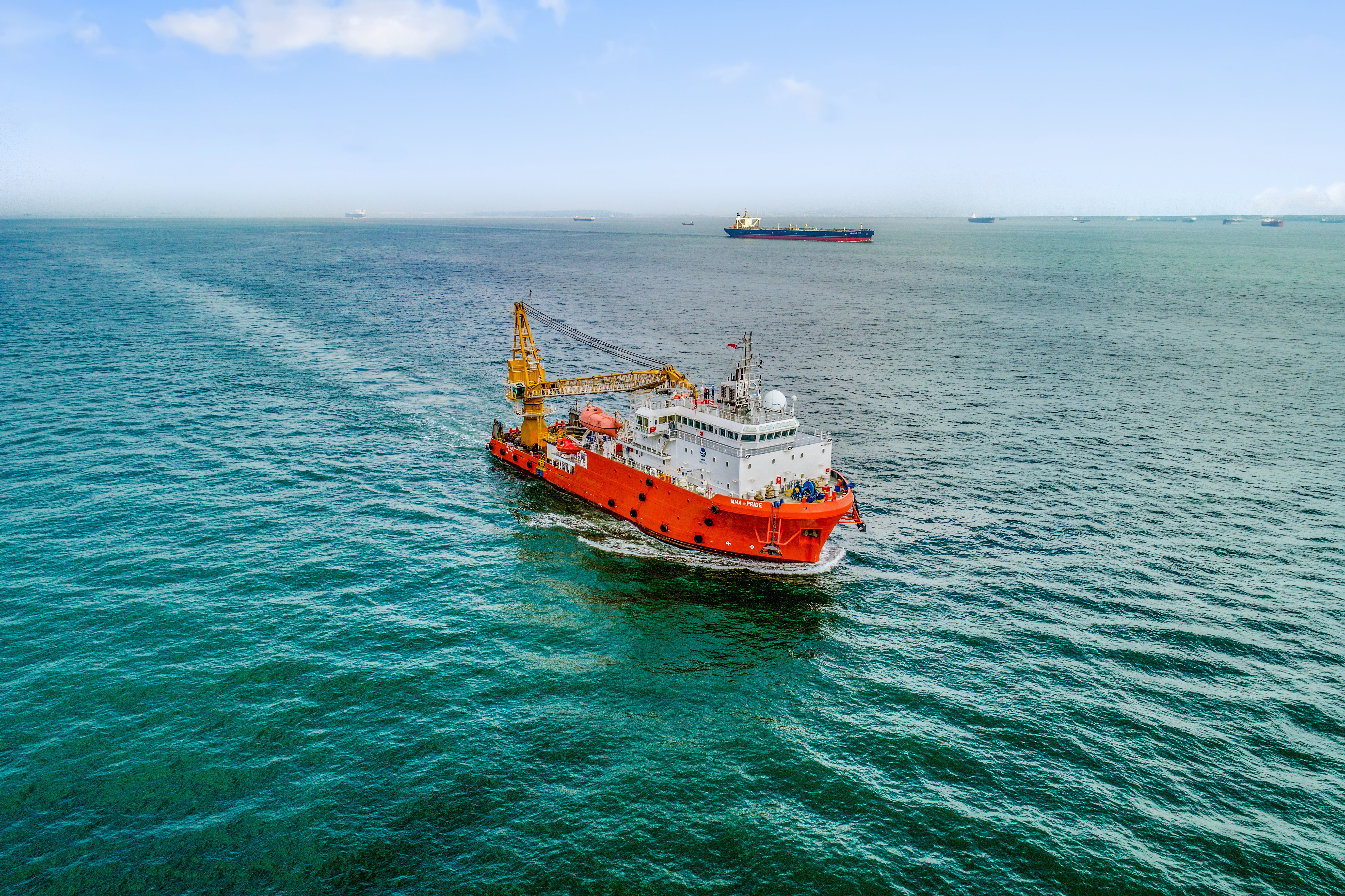

The MMA Pride is a truly multipurpose offshore support vessel. Its ability to provide significant accommodation and its endurance capacities make it an ideal marine asset offshore projects requiring extended time in field. Deck equipment including a 50 tonne crane make it suitable for construction support. A total working deck space of 650m2 at a rated load of 5t/m2 provide ample room and capacity to support cargo transportation scopes.
Enquire Today
Key Features
- Notation:
✠A1, Offshore Support Vessel (Supply), ✠AMS, SPS, ✠ACCU, ✠DPS-2, SPS 2008 Unrestricted Service
- Built & Flag:
Built in 2013 by Jaya Asiatic Shipyard, the vessel operates under a Singapore Flag
- Cranes:
1 x 50mt @ 46m / 15mt @ 50m Liebherr BOS 4200-50
- Accommodation:
148 man accommodation with SPS 2008 class notation
- Mooring System:
Four by 90 tonne point mooring system
- Area of Operations:
The vessel is a key marine asset for MMA supporting our client in Brunei currently
Vessel Summary
- PARTICULARS
- Vessel Type Multi-Purpose OSV
- IMO Number 9651917
- Official Number/Call Sign 398092/9V6693
- Port of Registry Singapore
- Year Built 2013
- Class American Bureau of Shipping
- Notation ✠A1, Offshore Support Vessel (Supply), ✠AMS, SPS, ✠ACCU, ✠DPS-2, SPS 2008 Unrestricted Service
- DETAILS
- Length Overall 78.0 m
- Breadth 20.4 m
- GRT-NRT 4,227/1,268
- Deadweight 2,966 t
- Depth Moulded 7.0 m
- Draft 5.39 m
- Clear Deck Space 650 m² (500 tons total)
- Max Speed 11.5 kts
- Economical speed 10.0 kts
- Sewage Plant 1 x 150 men EVAC MBR160C
- Rudders Twin Flat type High lift
- Joystick Kongsberg
- Flow Meter 1 for fuel and 1 for fresh water
- CAPACITY
- Fuel Oil 1,018 m³
- Potable Water 649 m³
- Sewage 3.8 m³
- Grey Water 23.6 m³
- MACHINERY
- Main Engines 2 x Caterpillar 3516C DITA. Tier 2 2,575 BHP
- Generators 4 x Volvo Pents D16 NG HE 470 kW
- Shaft Generators 2 x Stamford 1200 kW
- Emergency Generators 1 x 99 kW
- Bow Thruster 2 x 515 kW, Kawasaki KT-72B3
- Stern Thruster 2 x 515 kW, Kawasaki KT-72B3
- Propulsion 2 x CPP
- ACCOMMODATION
- Berths 10 x 1 men, 13 x 2 men, 28 x 4 men
- Total 148
- DECK EQUIPMENT - Tugger Winch
- Number & Capacity 2 x 10 T Mcgregor/Cargotech
- Wire Capacity 22 mm x 200 m
- DECK EQUIPMENT - 4 Point Mooring System
- Number & Capacity 4 x 90 T (1st layer static brake holding)
- Wire Capacity 38 mm x 1,500 m
- Other Deck Equipment
- Deck Crane 1 x 50 mt @ 46 m / 15 mt @ 50m Liebherr BOS 4200-50
- Aux Deck Crane 1 x TTS Marine GPT80-2-14
- Water Maker 2 x 25 m³/day reverse osmosis
- LIFESAVING
- Life Rafts 2 x 20 men
- Lifejackets 182
- Rescue Boat/Davit Harding FRB 650, 15 person capacity x 160 H.P.
- Life Boat/Davit 2 x Vanguard 75 person
- Lifebuoys 14
- Immersion Suits 6
- SPECIALIST
- DP Class Class 2
- DGPS 2 units
- MRU 3 units
- Wind Sensors 3 units
- Cyscan 1 unit
- Radius 1 unit
- Mooring Anchor 4 + 1
- A Frame Not Fitted
Projects
MMA Offshore was contracted by the Australian Government, Department of Defence to undertake the Cape Barren to Babel Island Hydrographic Survey.
MMA Offshore is a primary contractor to oil and gas operators, providing autonomous underwater vehicle solutions to collect seafloor and sub-seafloor data to assist in the engineering design of subsea infrastructure.
MMA Offshore was contracted by the Australian Government, Department of Defence to undertake the Mavis Reef (East), Bonaparte Archipelago Hydrographic Survey. The objective of the Survey was to update Australian Hydrographic Office Charts AUS730, AUS732, AUS320 and AUS323 through the provision of safety of navigation hydrographic surveys.
MMA was contracted by Allseas for the provision of grouting services and grout material on two drilling platforms that are to be decommissioned on the UK Continental Shelf.
MMA designed, fabricated and installed nine buoyant ‘sculptural reef flutes’ individually tethered to the seafloor by reinforced concrete and steel pyramids.
DPIRD awarded MMA an EPCI contract for an artificial reef to be installed 7km off the coast of Hillarys, Western Australia.
